Fully Automatic Wood Shaving Machine

Q: What capacity can I expect?

Typical reference capacity is about 500 to 800 kg/h for a two-shaft configuration and 1 to 1.5 t/h for a four-shaft configuration. Actual output depends on wood species, moisture, input dimensions and required shaving thickness.

Q: How many blades are installed?

The referenced Cronus configurations use approximately 100 blades per cutter shaft. The exact count and blade specification vary with the requested shaving size.

Convert logs, slabs and clean wood offcuts into consistent, lightweight shavings with two-shaft and four-shaft industrial configurations.

Compare Models Watch It Work

0.5-1.5 t/hReference output range

2 / 4 shaftsFlexible cutter configuration

125 mmCutter roller diameter

1973Parent company founded

50+Years of machinery experience

CEInternational compliance support

ISOCertified management systems

Product Overview

Thin, uniform shavings from a controlled planing process

Unlike a conventional branch chipper, this machine uses multiple cutter shafts to plane wood into curled flakes with a high surface area and low bulk density.

A powered carriage moves the raw material through the cutting zone at a steady rate. The blade specification is selected around the required shaving size, while the integrated conveyor continuously clears finished material for collection, drying, screening or packaging.

Discuss your raw material

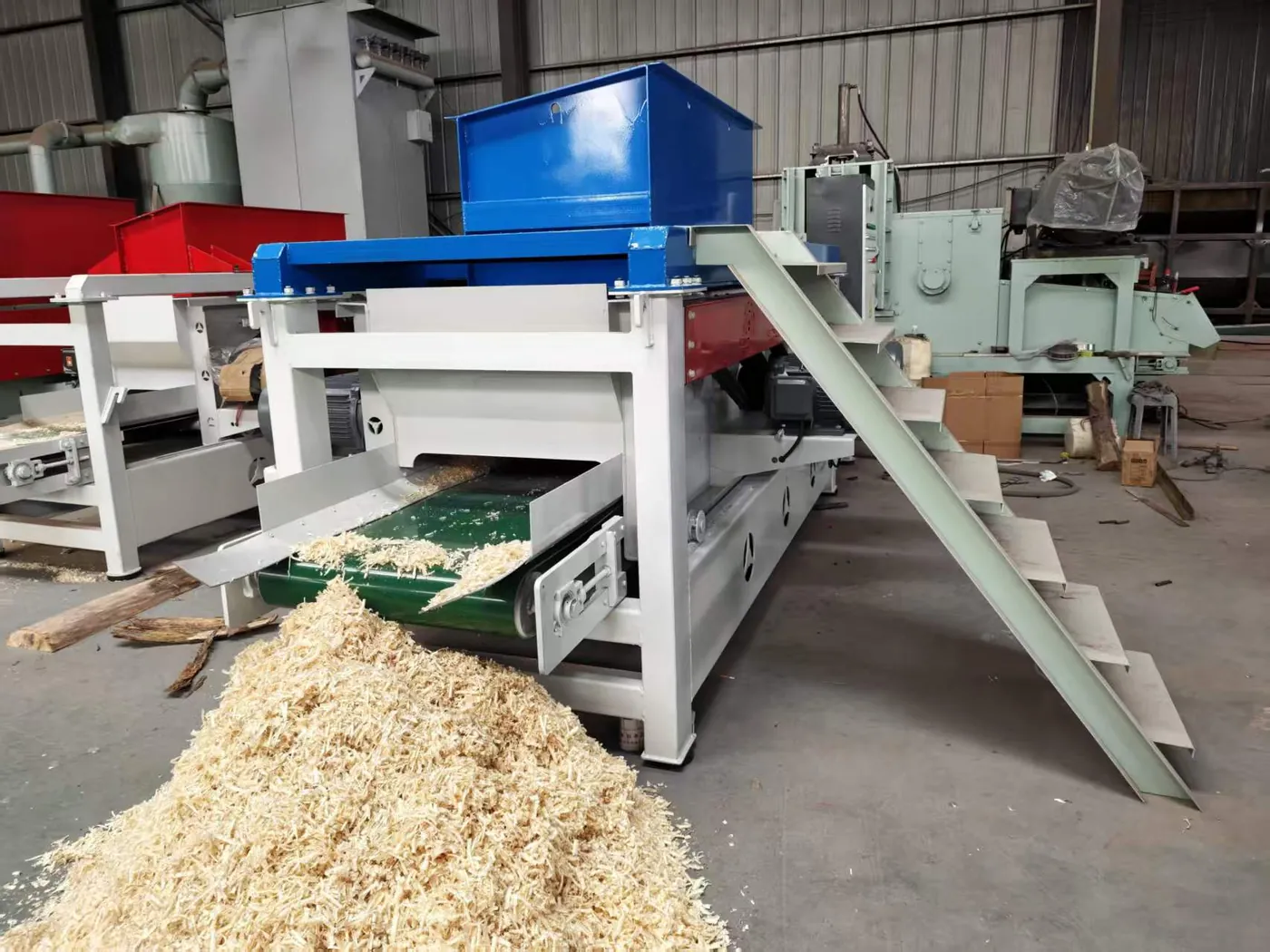

Cronus automatic wood shaving machine with discharge conveyor and finished shavings — Continuous cutting and conveyor discharge in a factory trial.

Working Principle

A straightforward four-stage production flow

Load

Place clean logs, boards or suitable offcuts into the feed chamber.

Advance

The powered reciprocating carriage feeds wood evenly across the cutters.

Plane

High-speed blades mounted on two or four shafts slice thin, curled shavings.

Discharge

The conveyor moves the product to collection, screening, drying or packing.

Cronus Advantages

Built around output consistency and practical operation

Each configuration is matched to the wood size, moisture, target shaving dimensions and required hourly capacity.

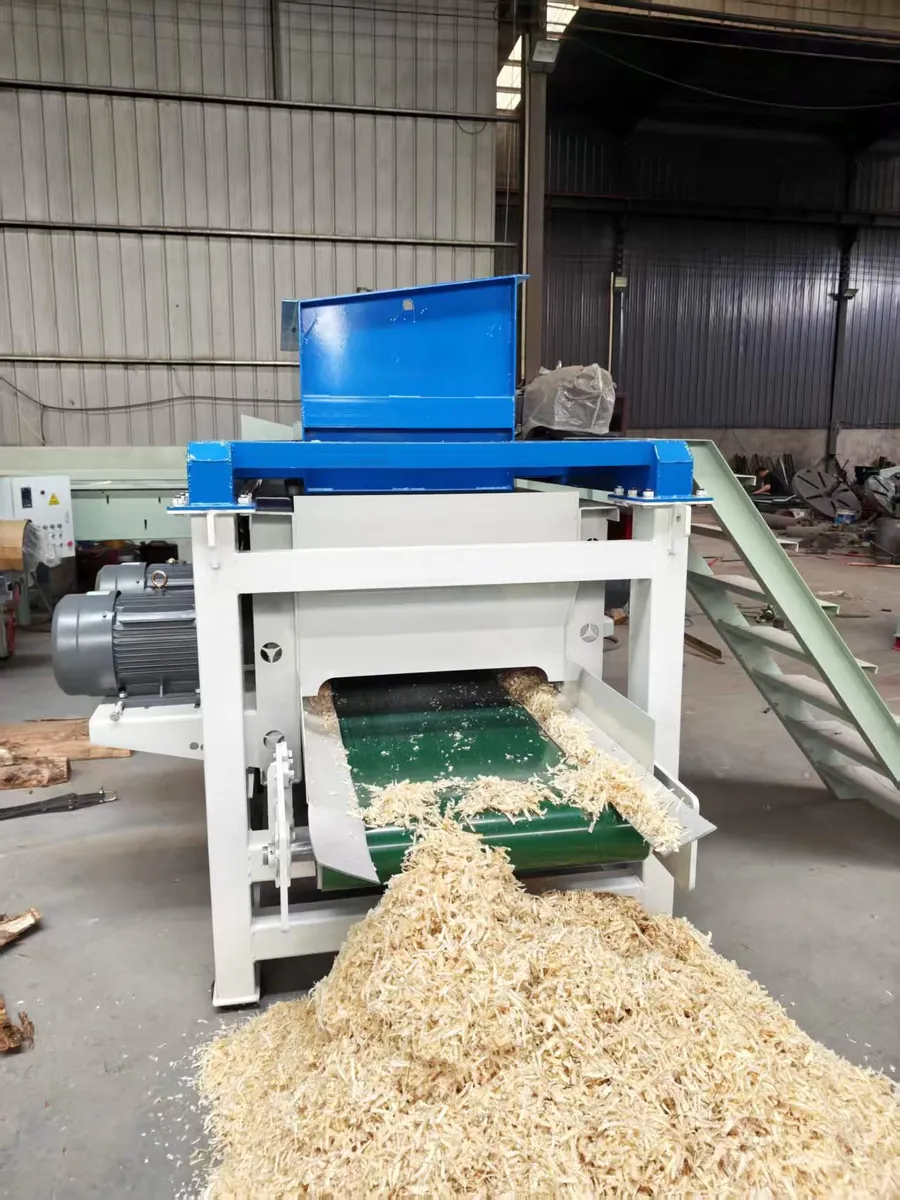

Front view of Cronus automatic wood shaver in operation

Two-shaft or four-shaft production

Choose a compact two-shaft unit for moderate demand or a four-shaft platform for higher throughput.

Blade setup tailored to the target flake

Blade type, exposure and count can be configured around animal bedding, packaging or downstream processing.

Powered reciprocating feed

Steady material travel supports more consistent cutting and reduces repetitive manual feeding.

Continuous conveyor discharge

Finished shavings leave the cutting area continuously, simplifying collection and connection to later process steps.

Heavy-duty cutter arrangement

The listed models use 125 mm cutter rollers with approximately 100 blades per shaft, subject to shaving specification.

Export-oriented electrical configuration

A matching control cabinet and destination-specific voltage options can be included in the supply scope.

Model Selection

Three platforms for different production targets

Capacity figures are reference values. Final output varies with wood species, moisture, input dimensions and shaving thickness.

Cronus blue two-shaft wood shaving machine

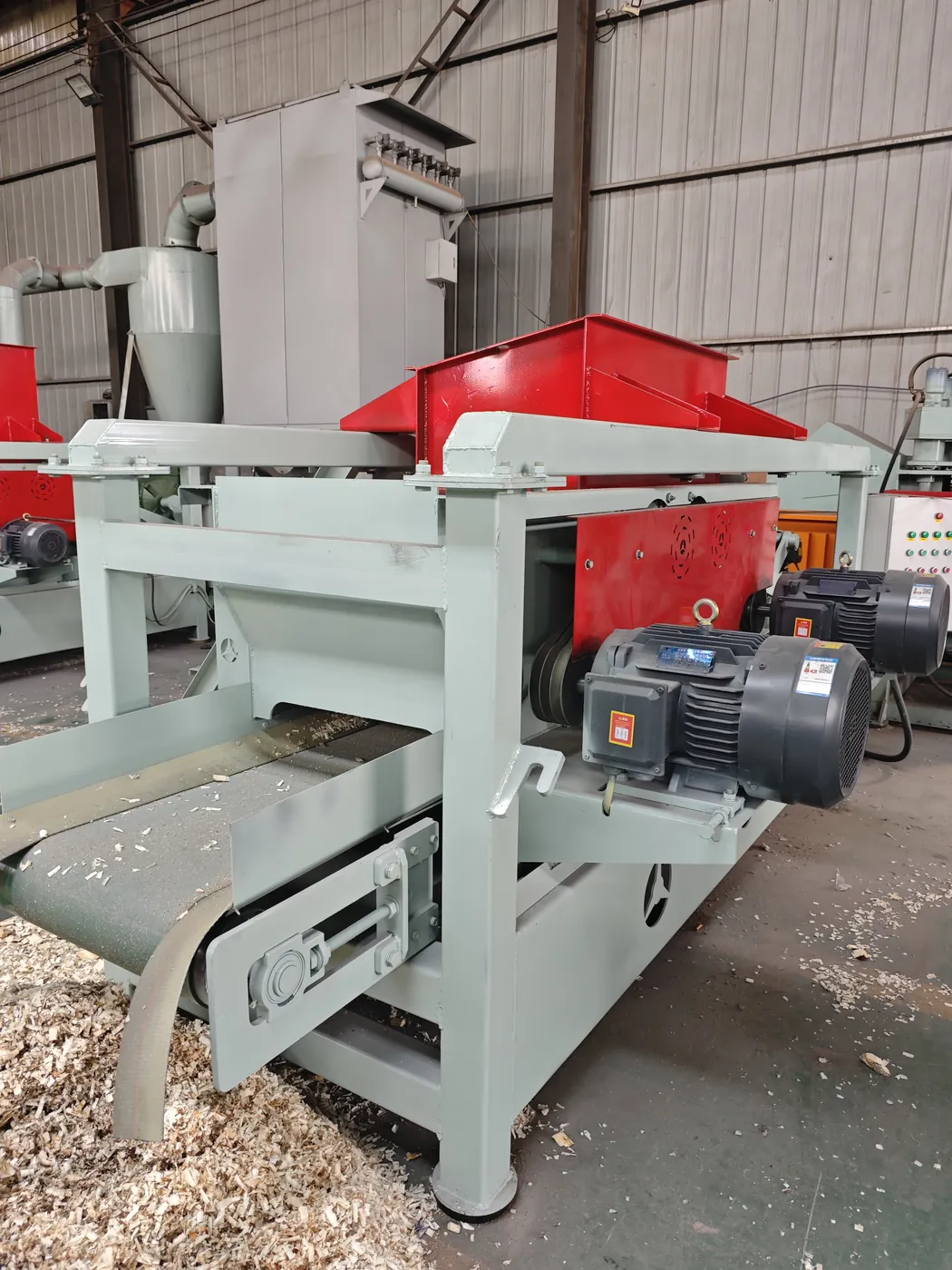

Cronus red four-shaft wood shaving machine

Specification	YD1050-2	YD1360-4	YD1470-4
Configuration	2 shafts	4 shafts	4 shafts
Reference capacity	500-800 kg/h	1-1.5 t/h	1-1.5 t/h
Feed opening	500 x 1000 mm	700 x 1400 mm	700 x 1400 mm
Main shaft power	7.5 kW x 2	7.5 kW x 4	11 kW x 4
Carriage power	5.5 kW	5.5 kW	4 kW
Conveyor power	0.37 kW	0.55 kW	0.55 kW
Machine dimensions	4200 x 1600 x 1700 mm	4800 x 1600 x 1700 mm	4800 x 2200 x 2000 mm
Cutter roller diameter	125 mm	125 mm	125 mm
Blade quantity	Approx. 100 x 2	Approx. 100 x 4	Approx. 100 x 4

Not sure which model fits? Send a photo and dimensions of your raw wood. Our team will recommend the cutter and feed configuration.

Request Selection Help

Applications

One controlled shaving process, multiple end markets

Final suitability depends on wood species, cleanliness, moisture, particle size and the quality standard of the downstream application.

Animal Bedding

Horse stalls, poultry houses, livestock areas and pet bedding.

Protective Packaging

Lightweight cushioning for suitable products and gift presentation.

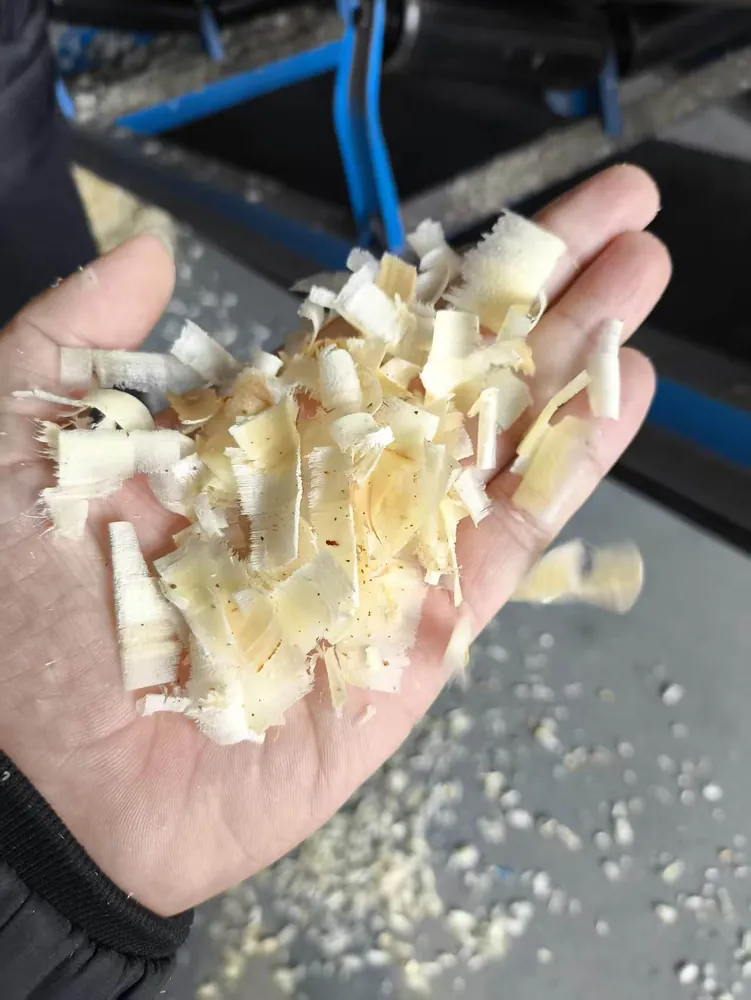

Finished curled wood flakes for panel and biomass processing

Panel Feedstock

Prepared furnish for compatible particleboard and wood-based panel processes.

Biomass Processing

Pre-sized material for briquetting, pelletizing or controlled fuel preparation after suitable drying.

Composting & Mulch

Carbon-rich bulking material for managed composting and selected landscaping uses.

Industrial Absorbent

Clean shavings for suitable workshop, transport or handling applications.

Factory Video

See the machine produce real shavings

Local workshop footage shows material feeding, cutting and discharge. The Cronus mark is overlaid on every player.

Production operationAutomatic feed, multi-shaft planing and conveyor discharge.

Workshop demonstrationFinished-shaving quality and continuous material handling.

Engineering Approach

Configured around the material, not a generic catalog number

Because shaving quality changes with wood condition and blade setup, Cronus confirms the application before finalizing the machine.

Two-shaft line for moderate production

Compact YD1050-2 configuration with a 500 x 1000 mm feed opening and integrated discharge conveyor.

Reference output
500-800 kg/h

Four-shaft line for higher demand

YD1360-4 and YD1470-4 platforms multiply the cutting shafts for higher-volume bedding and processing operations.

Reference output
1-1.5 t/h

Target shaving confirmation

Blade specification is selected after reviewing the wood species, moisture, input geometry and sample expectation.

Customization
Blade & voltage

About Cronus

International service backed by manufacturing roots established in 1973

Shanghai Cronus Machinery Co., Ltd. is a subsidiary of Guilin Mining Machinery Co., Ltd., created to serve international equipment customers more directly.

Guilin Mining Machinery, formerly Guilin Mining Machinery Factory, was founded in 1973. More than five decades of machinery production, process engineering and factory service support Cronus projects today.

200+Processing, welding and assembly equipment reported by the group

10,000+Customers served worldwide across the wider machinery business

GlobalSales and service focus from Shanghai

Guilin Mining Machinery factory building, parent company of Cronus — Manufacturing heritage

Cronus and Guilin Mining Machinery engineering team in a technical meeting — Engineering collaboration

Cronus and Guilin Mining Machinery after-sales service team — After-sales support

Quality & Recognition

Documented systems, innovation and enterprise credentials

Certificate applicability can vary by product and project. Copies relevant to the quoted machine can be confirmed with the sales team.

High-tech enterprise certificate held by Guilin Mining Machinery — High-tech Enterprise

English ISO quality management system certificate — ISO Quality System

Specialized and innovative enterprise certificate — Specialized Enterprise

Utility model patent certificate — Patent Portfolio

CE DocumentationISO Management SystemsInvention & Utility PatentsEnterprise Technology Center

Frequently Asked Questions

Technical questions buyers ask before selection

For a precise recommendation, send your raw-material dimensions, moisture, desired shaving size, hourly target and local power supply.

Ask a different question

What is the difference between a wood shaving machine and a wood chipper?

A wood shaving machine planes wood into thin, curled flakes. A conventional wood chipper cuts branches and timber into thicker chips. Cronus machines on this page are optimized for shavings.

Which raw materials can the machine process?

Suitable inputs include debarked logs, wood slabs, boards and clean offcuts that fit the selected feed opening. Metal, stone, soil and other contaminants must be removed.

Can the shaving size be adjusted?

Yes. Blade specification, blade exposure, wood condition and feed settings can be matched to the target shaving size during configuration and commissioning.

What capacity can I expect?

Typical reference capacity is about 500-800 kg/h for a two-shaft configuration and 1-1.5 t/h for a four-shaft configuration. Actual output depends on wood species, moisture, input dimensions and required shaving thickness.

Are the shavings suitable for animal bedding?

They can be used for horse, poultry, livestock and pet bedding when the selected wood species is safe, clean, properly dried and processed to the required size.

How does the automatic feeding system work?

A powered reciprocating carriage advances the wood through the cutting zone. Rotating cutter shafts plane the material and a conveyor carries the finished shavings away.

How many blades are installed?

The referenced configurations use approximately 100 blades per cutter shaft. The exact count and blade specification vary with the requested shaving size.

What electrical supply is required?

Voltage, frequency and control components can be configured for the destination market. Confirm the factory power supply and local electrical standard before quotation.

What maintenance is required?

Routine work includes blade inspection and sharpening, fastener checks, bearing lubrication, drive inspection, conveyor cleaning and removal of accumulated dust.

Can Cronus customize the machine?

Yes. Cronus can match cutter configuration, blade specification, feed opening, electrical standard and discharge arrangement to the raw material and finished-product requirement.

What information is needed for a quotation?

Provide the wood species, input size, moisture level, desired shaving dimensions, hourly capacity, voltage and intended application. Photos or a short material video are useful.

Does Cronus provide installation and after-sales support?

Cronus provides technical documentation, remote guidance, spare-parts support and project-specific commissioning arrangements according to the agreed supply scope.

Request a Proposal

Tell us what you need to turn into shavings

Include the raw wood size, moisture, target shaving dimensions and hourly output. Our team will reply with a suitable configuration.
